Product Description

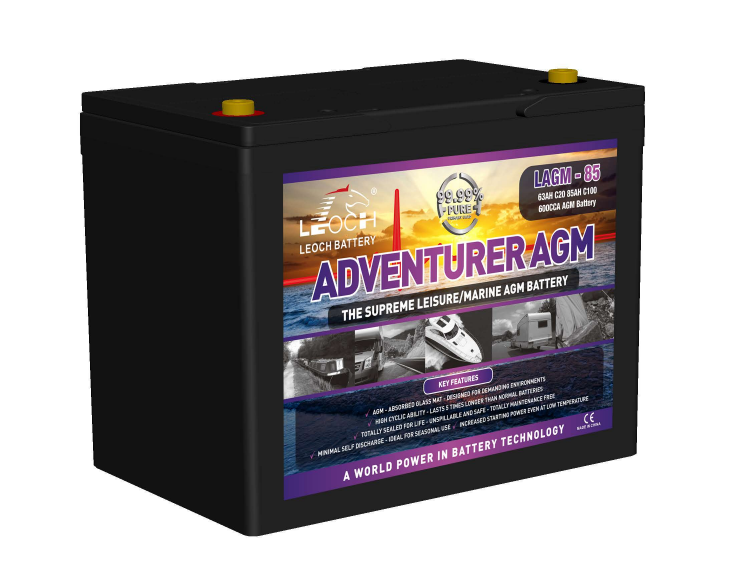

Leoch LAGM-85 12V 85Ah AGM Leisure Battery
The Leoch LAGM-85 is a 12V 85Ah AGM leisure battery designed for dependable deep-cycle power in caravans, motorhomes, boats and off-grid systems. Its sealed, maintenance-free AGM construction provides excellent vibration resistance and reliable performance for mobile and leisure applications.
Battery in Brief
Part of the Leoch Adventurer AGM range, the LAGM-85 combines deep-cycle capability with a compact 85Ah format. The Adventurer AGM range can deliver 600+ cycles at 50% Depth of Discharge (DoD), making it a strong choice for leisure applications requiring repeated discharge and recharge cycles.
Features and Benefits
- 12V 85Ah AGM leisure battery – ideal for caravan, motorhome and marine use
- 600+ cycles at 50% DoD – designed for repeated deep-cycle use
- Sealed and maintenance-free – no regular topping up required
- Spill-resistant AGM construction – electrolyte is absorbed within the glass mat separators
- High vibration resistance – well suited to mobile and marine environments
- Low self-discharge – helps retain charge during periods of storage
- Suitable for solar and off-grid systems when used with an AGM-compatible charging system
Ideal Applications
- Caravans
- Motorhomes and campervans
- Boats and marine leisure systems
- Solar battery systems
- Off-grid auxiliary power
AGM Technology
AGM (Absorbent Glass Mat) batteries use fibreglass separators to absorb and retain the electrolyte within the battery. This sealed construction makes AGM batteries maintenance-free and highly resistant to vibration, providing a dependable alternative to conventional flooded leisure batteries for mobile applications.
Product Specifications
| Voltage | 12V |
| Capacity | 85Ah (C100), 63Ah (C20) |
| Technology | AGM |
| Cycle Life | 600+ cycles at 50% DoD |
| Weight | 18.00kg |
| Length | 260mm |
| Width | 170mm |
| Height | 210mm |
| Total Height | 225mm |
| Terminal Layout | Type 1 |
| Terminal Type | T6 / Post |
| Warranty | 1 Year |
FAQs
Is the LAGM-85 suitable for caravans and motorhomes?
Yes. The LAGM-85 is specifically designed for leisure applications and provides 85Ah of deep-cycle capacity for powering auxiliary equipment in caravans, campervans and motorhomes.
Can the LAGM-85 be used with solar panels?
Yes. The LAGM-85 is suitable for solar and off-grid applications when paired with a charge controller configured for AGM batteries.
How many cycles does the LAGM-85 provide?
The Leoch Adventurer AGM range is designed to provide 600+ cycles at 50% Depth of Discharge. Actual service life will depend on discharge depth, charging conditions, temperature and usage.
Does the LAGM-85 require maintenance?
No. The LAGM-85 uses sealed AGM technology and does not require the electrolyte topping-up associated with conventional flooded batteries.
Spec Sheet
Leoch LAGM-85 Specification Sheet
Compare 85–90Ah Leisure Battery Options
Different battery technologies suit different usage patterns. The comparison below provides a simple overview of the available options around this capacity.
| Model | Technology | Cycle Life | Best For |
|---|---|---|---|
| SFL-85 | Flooded Lead Acid | ~300–400 | Lower upfront cost |
| LAGM-85 | AGM | 600+ at 50% DoD | Maintenance-free leisure use |
| LDC12-90-G24-DT | Lead Carbon AGM | ~1300–1500 | Frequent deep cycling |
Note: Actual cycle life varies according to depth of discharge, charging profile, temperature and operating conditions.
